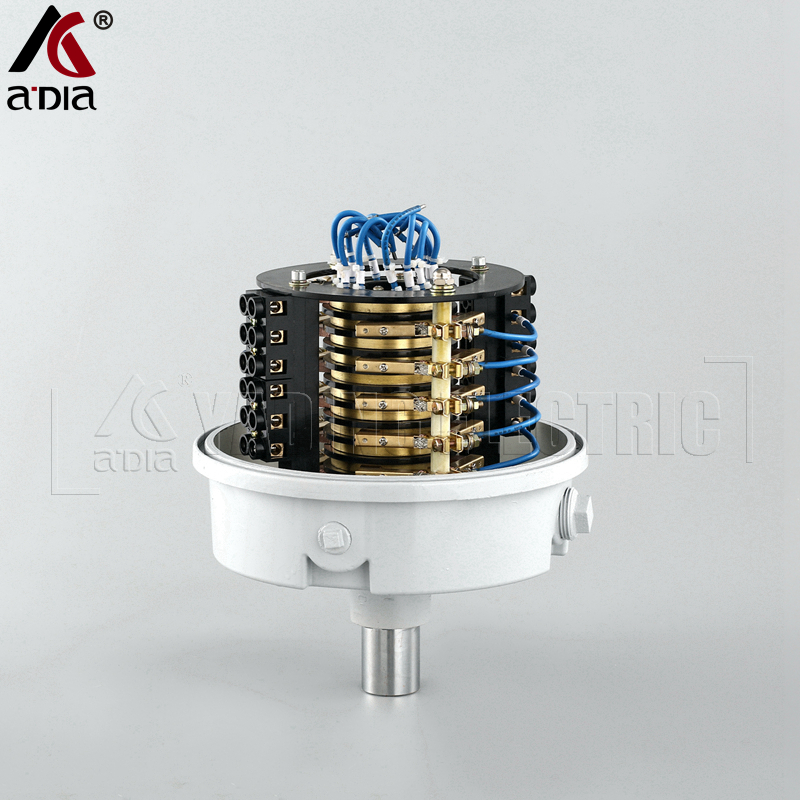

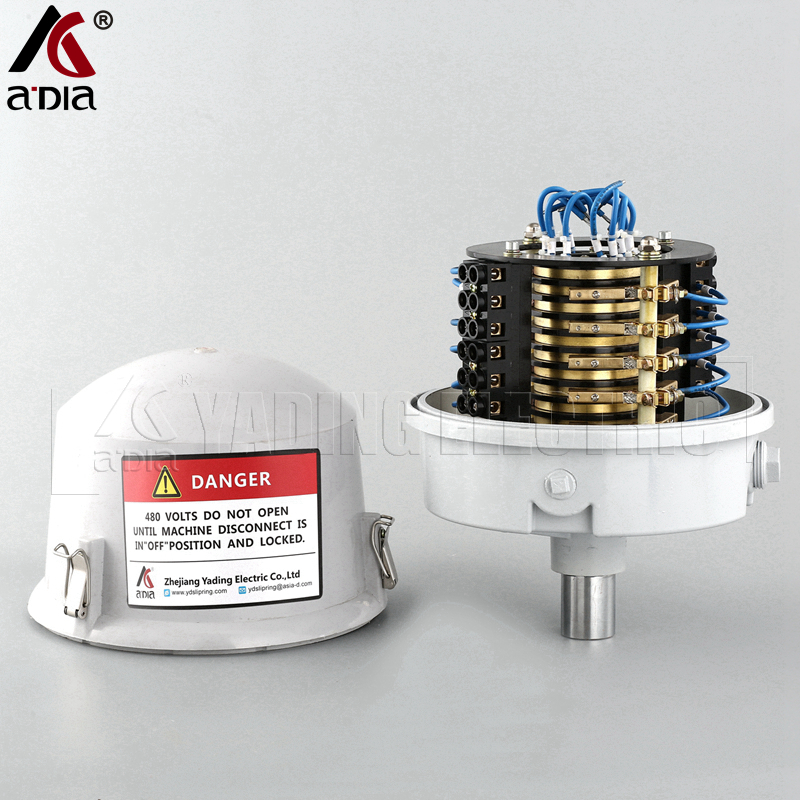

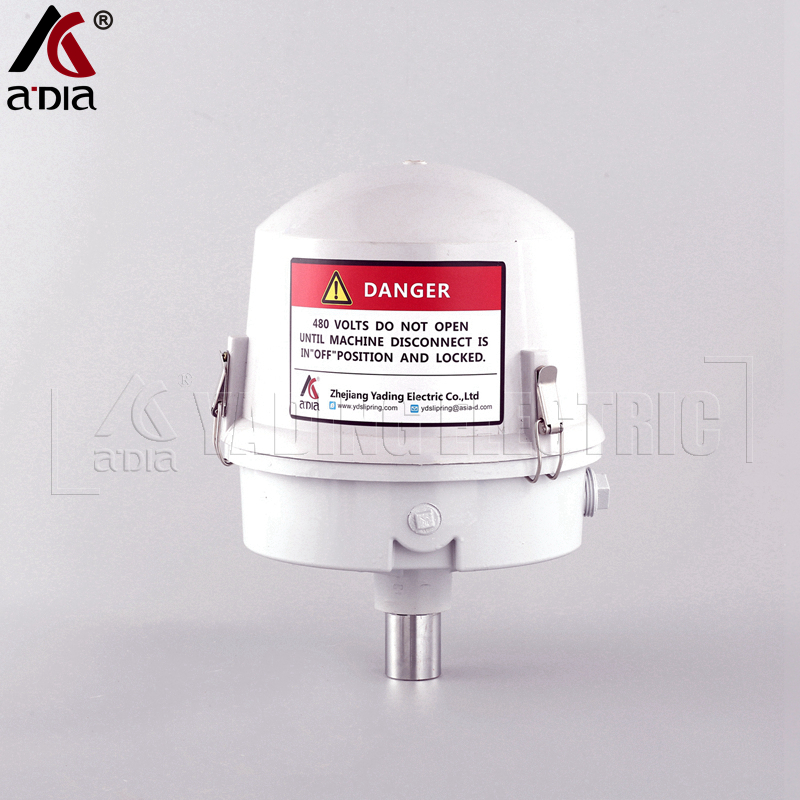

1.name :Collector ring

2.installation:the top of the Pivot

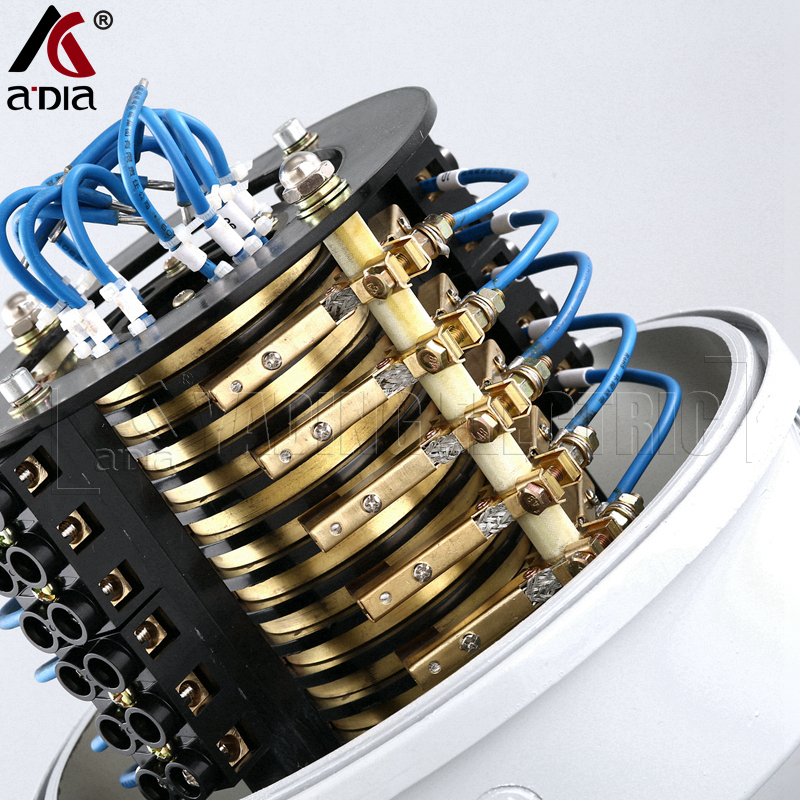

3.electrical parts inside:synchronous control device,run micro switch,safety

 micro-switch,AC contactor,terminal blocks etc

4.color:Silver white

5.voltage:600V

7.Rings:11wires

1.name :Collector ring

2.installation:the top of the Pivot

3.electrical parts inside:synchronous control device,run micro switch,safety

 micro-switch,AC contactor,terminal blocks etc

4.color:Silver white

5.voltage:600V

7.Rings:11wires

1.name :Collector ring

2.installation:the top of the Pivot

3.electrical parts inside:synchronous control device,run micro switch,safety

 micro-switch,AC contactor,terminal blocks etc

4.color:Silver white

5.voltage:600V

7.Rings:11wires

1.name :Collector ring

2.installation:the top of the Pivot

3.electrical parts inside:synchronous control device,run micro switch,safety

 micro-switch,AC contactor,terminal blocks etc

4.color:Silver white

5.voltage:600V

7.Rings:11wires
