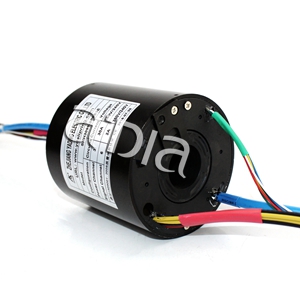

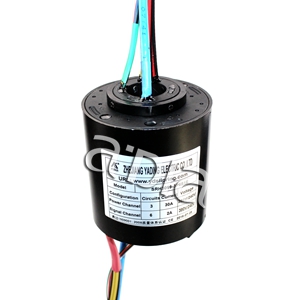

Through bore current collector slip ring for machinery equipment SRH3099-3P6S1E
|
Specification |
Unit |
|
Rings |
3P6S1E |
|
Current value |
30A for 3 rings , 2A for 6 rings ,1 ethernet |
|
Voltage |
380VAC/240VDC |
|
Lead type |

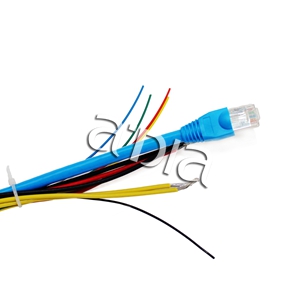

Colour coded, silver plated, PTFE insulated lead wires |
|
Lead length |
300mm (other lengths on request) |
|
Dielectric strength |
500VAC @ 50Hz |
|
Insulation Resistance |
≥1000MΩ/500VDC |
|
Dynamic contact Resistance |
≤0.01Ω |
|
Specification |
Unit |
|
Operate Speed |
0-600rpm |
|
Contact material |
Gold or silver alloy |
|
Bearing |
Steel ball bearing |
|
Housing |
Aluminum |
|
Temperature range |
-40 to 80 |
|
IP |
IP 51- IP 65 |
The life of the slip ring is decided by the rotating speed, working environment and temperature.
