Продукты
текущая страница : Дома » Продукты » Традиционное коллекторное кольцо
- Наименование：
- Категория продукта：
15205771557| Подробнее | Консультация онлайн |
|---|

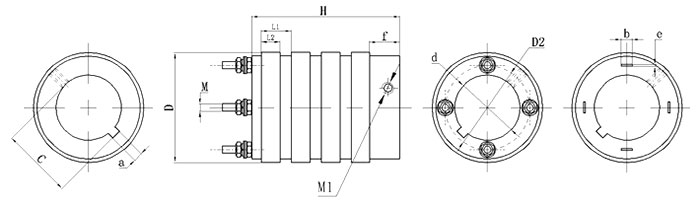

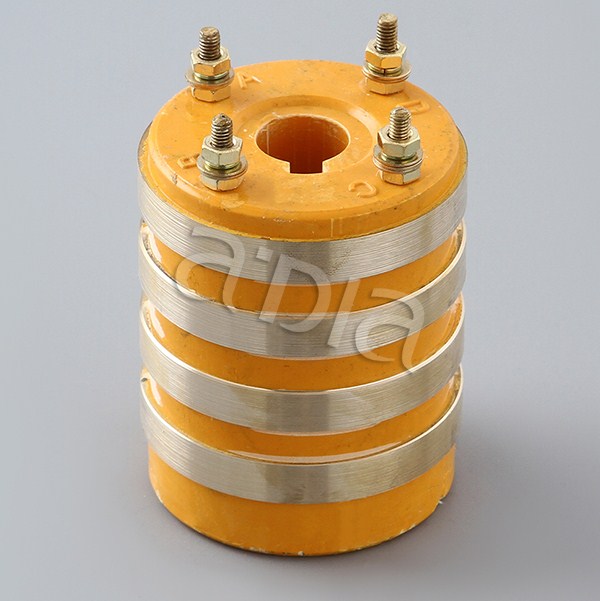

Серия 4 контурных коллекторных колец
|
No. |
Model |
d |
D |
H |
L2 |
L1 |
M |
f |
b |
e |
a |
C |
M1 |
|
1 |
SRS17K4555-4T |
17 |
45 |
55 |
8 |
13 |
M4 |
4 |
/ |
/ |
5 |
20 |
/ |
|
2 |
SRS17H5058-4T |
17 |
50 |
58 |
7 |
13 |
M4 |
10 |
/ |
/ |
/ |
/ |
2-M5 |
|
3 |
SRS175064-4N |
17 |
50 |
64 |
9 |
16 |
5 |
2 |
/ |
/ |
/ |
/ |
/ |
|
4 |
SRS17KH6075-4T |
17 |
60 |
75 |
9 |
16 |
M4 |
16 |
/ |
/ |
6 |
20 |
2-M6 |
|
5 |
SRS18KH5060-4T |
18 |
50 |
60 |
7 |
13 |
M4 |
10 |
/ |
/ |
6 |
21 |
2-M5 |
|
6 |
SRS20K5056-4T |
20 |
50 |
56 |
7 |
12.5 |
M4 |
10 |
/ |
/ |
6 |
23 |
/ |
|
7 |
SRS20H5059-4T |
20 |
50 |
59 |
7 |
12.5 |
M4 |
10 |
/ |
/ |
/ |
/ |
2-M5 |
|
8 |
SRS20H5058-4N |
20 |
54 |
58 |
3.7/8.6 |
/ |
4/3 |
/ |
/ |
/ |
/ |
/ |
2-M5 |
|
9 |
SRS20H5573-4T |
20 |
55 |
73 |
10 |
14 |
M4 |
15 |
/ |
/ |
/ |
/ |
2-M6 |
|
10 |
SRS20KH6066-4T |
20 |
60 |
66 |
9 |
16 |
M4 |
6 |
/ |
/ |
8 |
24 |
4-M4 |
|
11 |
SRS206565-4N |
20 |
65 |
65 |
10 |
15 |
5 |
5 |
/ |
/ |
/ |
/ |
/ |
|
12 |
SRS206070-4T |
20 |
60 |
70 |
9.5 |
17.5 |
M4 |
4 |
/ |
/ |
/ |
/ |
Резьбовые отверстия между контурами
|
|
13 |
SRS25H5059-4T |
25 |
50 |
59 |
7 |
12.5 |
M4 |
10 |
/ |
/ |
/ |
/ |
2-M5 |
|
14 |
SRS25H5458-4T |
25 |
54 |
58 |
8.6/3.7 |
/ |
M4/M3 |
/ |
/ |
/ |
/ |
/ |
2-M5 |
|
15 |
SRS25H5474-4T |
25 |
54 |
74 |
10 |
14 |
M4 |
15 |
/ |
/ |
/ |
/ |
2-M6 |
|
16 |
SRS25K6075-4T |
25 |
60 |
75 |
9 |
16 |
M4 |
14 |
/ |
/ |
8 |
29 |
/ |
|
17 |
SRS2565102-4T |
25 |
65 |
102 |
8 |
13 |
M4 |
21 |
/ |
/ |
/ |
/ |
/ |
|
18 |
SRS25H6775-4T |
25 |
67 |
75 |
10 |
15 |
M4 |
16 |
/ |
/ |
/ |
/ |
2-M6 |
|
19 |
SRS25K7090-4S |
25 |
70 |
90 |
9 |
16 |
/ |
21 |
8 |
2 |
8 |
29 |
/ |
|
20 |
SRS25K7090-4T |
25 |
70 |
96 |
10 |
21.5 |
M4 |
12 |
/ |
/ |
8 |
29 |
2-M8 |
|
21 |
SRS26K7994-4T |
26 |
79 |
94 |
12 |
22 |
M5 |
6 |
/ |
/ |
8 |
31.8 |
/ |
|
22 |
SRS28H6066-4T |
28 |
60 |
66 |
9 |
16 |
M4 |
6 |
/ |
/ |
/ |
/ |
4-M4 |
|
23 |
SRS30H5574-4T |
30 |
55 |
74 |
10 |
14 |
M4 |
15 |
/ |
/ |
/ |
/ |
2-M6 |
|
24 |
SRS306066-4T |
30 |
60 |
66 |
9 |
16 |
M4 |
5 |
/ |
/ |
/ |
/ |
/ |
|
25 |
SRS30H6075-4T |
30 |
60 |
75 |
9 |
16 |
M4 |
14 |
/ |
/ |
/ |
/ |
2-M8 |
|
26 |
SRS30K8080-4N |
30 |
80 |
80 |
11 |
18 |
6 |
5 |
/ |
/ |
8 |
33.5 |
/ |
|
27 |
SRS326050-4N |
32 |
60 |
50 |
8 |
12 |
4 |
3 |
/ |
/ |
/ |
/ |
/ |
|
28 |
SRS32H6066-4T |
32 |
60 |
66 |
9 |
16 |
M4 |
5 |
/ |
/ |
/ |
/ |
4-M4 |
|
29 |
SRS32H6075-4T |
32 |
60 |
75 |
9 |
16 |
M4 |
14 |
/ |
/ |
/ |
/ |
2-M8 |
|
30 |
SRS326575-4T |
32 |
65 |
75 |
10 |
15 |
M4 |
15 |
/ |
/ |
/ |
/ |
/ |
|
31 |
SRS35H6080-4T |
35 |
60 |
80 |
10 |
16 |
M4 |
16 |
/ |
/ |
/ |
/ |
2-M8 |
|
32 |
SRS357070-4S |
35 |
70 |
70 |
9 |
16 |
/ |
6 |
8 |
2 |
8 |
39 |
/ |
|
33 |
SRS358080-4T |
35 |
80 |
80 |
11 |
20 |
M4 |
5 |
/ |
/ |
/ |
/ |
/ |
|
34 |
SRS359048-4T |
35 |
90 |
48 |
8 |
11 |
M4 |
4 |
/ |
/ |
/ |
/ |
/ |
|
35 |
SRS408080-4T |
40 |
80 |
80 |
11.5 |
20 |
M4 |
5 |
/ |
/ |
/ |
/ |
/ |
|
36 |
SRS428076-4N |
42 |
80 |
76 |
11.5 |
20 |
4 |
6 |
/ |
/ |
/ |
/ |
/ |
|
37 |
SRS4512956-4T |
45 |
129 |
56 |
8 |
13 |
M4 |
4 |
/ |
/ |
/ |
/ |
/ |
|
38 |
SRS45K8090-4S |
45 |
80 |
90 |
12 |
21 |
/ |
7 |
10 |
2 |
10 |
49 |
/ |
|
39 |
SRS4513067-4N |
45 |
130 |
67 |
8 |
12 |
4 |
5 |
/ |
/ |
/ |
/ |
/ |
|
40 |
SRS45K145195-4S |
45 |
145 |
195 |
17 |
72 |
/ |
27 |
15 |
2 |
12 |
49 |
/ |
|
41 |
SRS48K103120-4T |
48 |
103 |
120 |
15 |
25 |
M6 |
10 |
/ |
/ |
12 |
6 |
/ |
|
42 |
SRS508090-4S |
50 |
80 |
90 |
2 |
21 |
/ |
7 |
10 |
2 |
/ |
/ |
/ |
|
43 |
SRS5010075-4T |
50 |
100 |
75 |
10 |
15 |
M4 |
5 |
/ |
/ |
/ |
/ |
/ |
|
44 |
SRS50100135-4S |
50 |
130 |
135 |
15 |
33 |
/ |
10 |
20 |
3 |
/ |
/ |
/ |
|
45 |
SRS50140131-4N |
50 |
140 |
131 |
16 |
29 |
8 |
15 |
/ |
/ |
/ |
/ |
/ |
|
46 |
SRS55K100118-4S |
55 |
100 |
118 |
13.5/9 |
27 |
/ |
12 |
10 |
2 |
8 |
59 |
/ |
|
47 |
SRS55K120110-4S |
55 |
120 |
110 |
13 |
27 |
/ |
9 |
14 |
2 |
12 |
5 |
/ |
|
48 |
SRS60K9048-4T |
60 |
90 |
48 |
8 |
11 |
M4 |
4 |
/ |
/ |
8 |
64 |
/ |
|
49 |
SRS60115130-4S |
60 |
115 |
130 |
15 |
30 |
/ |
20 |
10 |
2 |
/ |
/ |
/ |
|
50 |
SRS60118137-4T |
60 |
118 |
137 |
8 |
13 |
M4 |
5 |
/ |
/ |
/ |
/ |
/ |
|
51 |
SRS60K120110-4T/S |
60 |
120 |
110 |
13 |
27 |
M8 |
9 |
14 |
2 |
12 |
4 |
/ |
|
52 |
SRS60K120138-4T/S |
60 |
120 |
138 |
14.5 |
35 |
M8 |
10 |
15 |
3 |
14 |
65 |
/ |
|
53 |
SRS60H130107-4S |
60 |
130 |
107 |
10 |
15 |
M4 |
11 |
/ |
/ |
/ |
/ |
2-M8 |
|
54 |
SRS60160165-4S |
60 |
160 |
165 |
20 |
40 |
/ |
22 |
20 |
3 |
/ |
/ |
/ |
|
55 |
SRS60K160164-4S |
60 |
160 |
164 |
22 |
40 |
/ |
12 |
20 |
3 |
12 |
4 |
|
|
56 |
SRS64K105107-4S |
64 |
105 |
107 |
15 |
26 |
/ |
7 |
12 |
2 |
12 |
69 |
/ |
|
57 |
SRS65120110-4T |
65 |
120 |
110 |
13 |
27 |
M8 |
9 |
/ |
/ |
/ |
/ |
/ |
|
58 |
SRS6513037-4T |
65 |
130 |
67 |
8 |
12 |
M4 |
5 |
/ |
/ |
/ |
/ |
/ |
|
59 |
SRS65162205-4S |
65 |
162 |
205 |
18 |
40 |
/ |
/ |
20 |
3 |
/ |
/ |
/ |
|
60 |
SRS65164165-4S |
65 |
164 |
165 |
18 |
40 |
/ |
22 |
20 |
3 |
/ |
/ |
/ |
|
61 |
SRS66185205-4S |
66 |
185 |
205 |
24 |
52 |
/ |
14 |
20 |
3 |
/ |
/ |
/ |
|
62 |
SRS68188205-4S |
65 |
188 |
205 |
24 |
52 |
/ |
20 |
3 |
/ |
/ |
/ |
/ |
|
63 |
SRS70H12078-4T |
70 |
120 |
78 |
10 |
15 |
M4 |
15 |
/ |
/ |
/ |
/ |
2-M8 |
|
64 |
SRS7013068-4N |
70 |
130 |
68 |
7.8 |
12 |
4 |
/ |
/ |
/ |
/ |
/ |
/ |
|
65 |
SRS70186205-4S |
70 |
186 |
205 |
24 |
52 |
/ |
|
20 |
3 |
/ |
/ |
/ |
|
66 |
SRS758076-4N |
75 |
80 |
76 |
11 |
20 |
4 |
6 |
/ |
/ |
/ |
/ |
/ |
|
67 |
SRS75120110-4S |
75 |
120 |
110 |
13 |
27 |
/ |
9 |
14 |
2 |
/ |
/ |
/ |
|
68 |
SRS75K140130-4S |
75 |
140 |
130 |
18 |
32 |
/ |
10 |
15 |
3 |
12 |
79 |
/ |
|
69 |
SRS75K160100-4T |
75 |
160 |
100 |
12 |
22 |
M6 |
7 |
/ |
/ |
12 |
79 |
/ |
|
70 |
SRS78.5F12975-4N |
78.5 |
129 |
75 |
Металлический стержень8 |
12.5 |
12 |
4 |
/ |
/ |
/ |
/ |
/ |
|
71 |
SRS80H13067-4T |
80 |
130 |
67 |
9 |
12 |
M4 |
5.5 |
/ |
/ |
/ |
/ |
2-M8 |
|
72 |
SRS8013089-4N |
80 |
130 |
89 |
8 |
18 |
4 |
8 |
/ |
/ |
/ |
/ |
/ |
|
73 |
SRS80K132100-4T |
80 |
132 |
100 |
8 |
18 |
M4 |
9 |
/ |
/ |
12 |
84 |
/ |
|
74 |
SRS80K140130-4S |
80 |
140 |
130 |
17.5 |
32 |
/ |
9 |
15 |
3 |
12 |
84 |
/ |
|
75 |
SRS80K188205-4T |
80 |
188 |
205 |
24 |
52 |
M12 |
14 |
20 |
3 |
12 |
4 |
/ |
|
76 |
SRS90K135166-4S |
90 |
135 |
166 |
18 |
37 |
/ |
14 |
15 |
3 |
16 |
96 |
/ |
|
77 |
SRS90K160202-4S |
90 |
160 |
202 |
25 |
50 |
/ |
12 |
20 |
3 |
18 |
5 |
/ |
|
78 |
SRS90K186205-4S |
90 |
186 |
205 |
24 |
52 |
/ |
4 |
20 |
2 |
12 |
4 |
/ |
|
79 |
SRS600685245-4N |
600 |
685 |
245 |
28 |
55 |
12 |
30 |
/ |
/ |
/ |
/ |
/ |
Примечание: Ø означает медные столбы без резьбы; M означает винты с резьбой.
Для оформления заказа свяжитесь с нами.

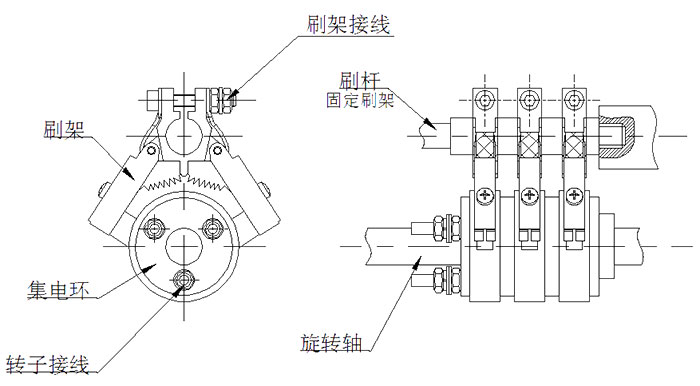

Диаграмма монтажа
